Street Lights and Solar Blinkers

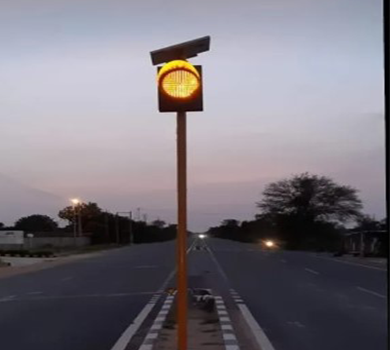

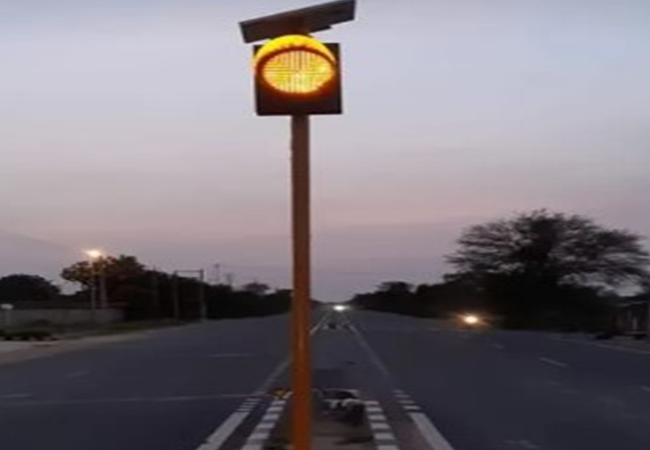

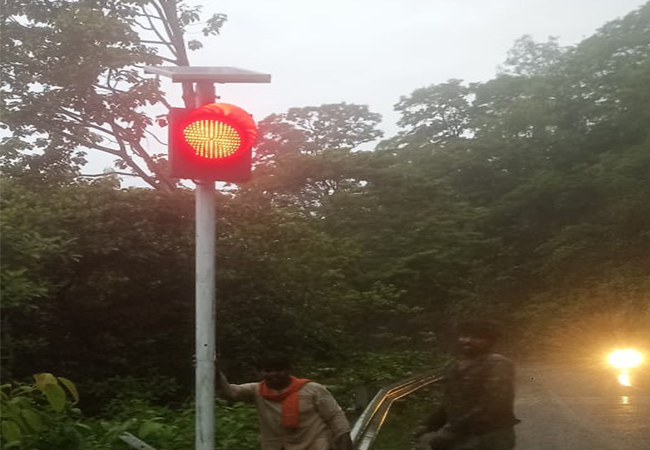

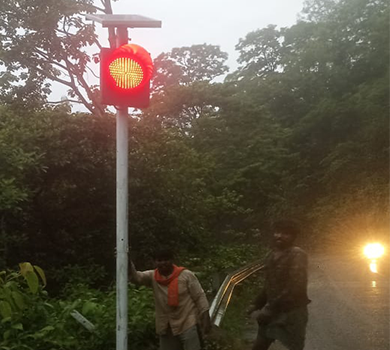

The Solar Powered Traffic Signal Blinkers are manufactured by using superior quality raw materials & are known for their uninterrupted operations and self-generated power.
The whole assembly includes Solar Panel, Frame for Solar Panel, Traffic Signal Blinker, Wire Harness, Charge Controller, Battery, Signal Pole etc. Once installed Solar Traffic warning Blinker lasts for many years. These blinkers are available for Dusk to Dawn operation for 24 hours operation.
| No | Specification | Details |
|---|---|---|
| 1 | Blinker Size | 300mm(12 inch) & 200mm (8 inch) |
| 2 | Body | Moulded Polycarbonate, suitable for extreme weather conditions |
| 3 | Lens | U.V Stabilized, Transparent Polycarbonate |
| 4 | Colour | Red / Amber / Green |
| 5 | PCB Used | 1.5mm thick, Glass Epoxy for Power Supply / LED Display |
| 6 | LED Used | Ultra Bright, Water Clear |
| 7 | Viewing Angle | 24 Degree for LED's |
| 8 | No of LEDs | 96/8 watts, 176/12 Watts (No of LEDS/Power Consumption |
| 9 | Charge Control Unit (CCU) | Three stage battery charge monitoring algorithm |
| 10 | Solar Panel | 12 Volt, Wattage as per specification |
| 11 | Battery | 12.8V 6Ah LIFEP04 Battery Pack |
| 12 | Clamps | For Mounting traffic signal, battery box & solar panel |
| 13 | Pole | Dia 3" or 4", Height 4 to 6 m GI or MS Pipe |
| 14 | Working Voltage | 12v DC |
| 15 | Power Supply | Total Solid State electronic Circuitry |
| 16 | Frequency | 30 to 40 Flashes per Minutes as desired |
| 17 | Operation | 24 hours or 12 Hours (Dusk to Dawn) |
| 18 | Control Card | in built & Solid State |
| 19 | Power Factor | >0.90 |
| 20 | Visibility | 599 Mts Good even during bad Weather |

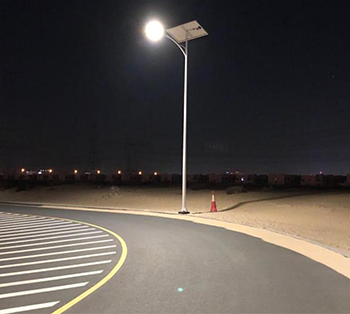

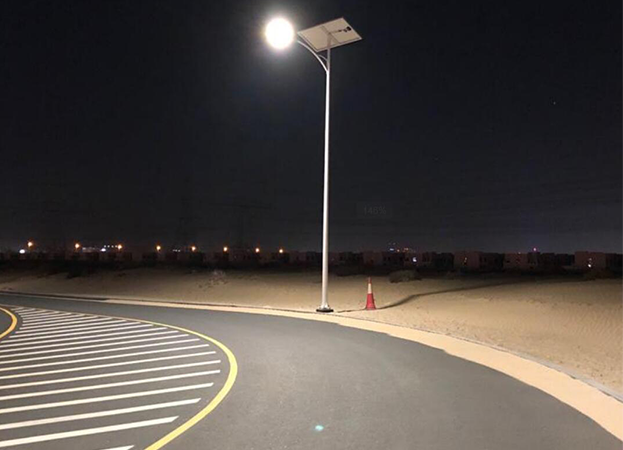

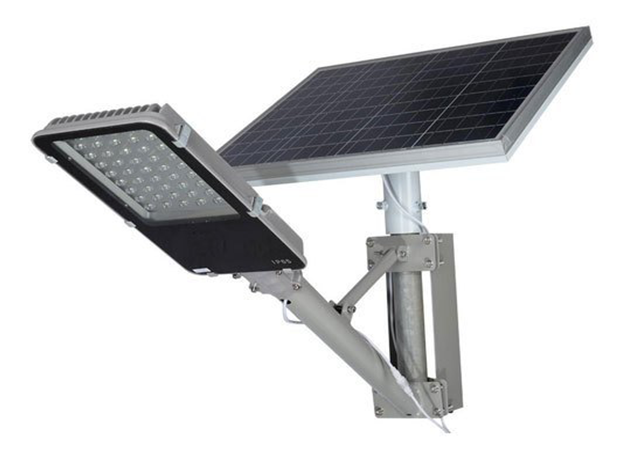

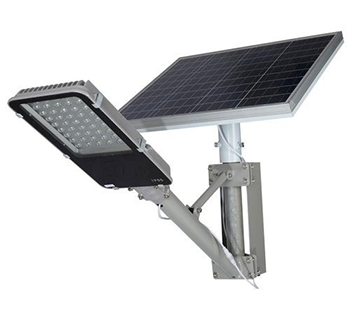

Solar Street Light
Solar Street Light is made in with high efficiency Solar PV modules, longer life Lithium batteries, high efficiency led, smart inbuilt Passive Infrared PIR motion sensor that modify lighting according to human presence, it control the dimming and brightness of light, if there is no motion for more than 30 seconds, the controller reduces brightness to Thirty percent, on detecting any movement in the range of twelve meters, the light will automatically glow at full power, which increases the backup time
